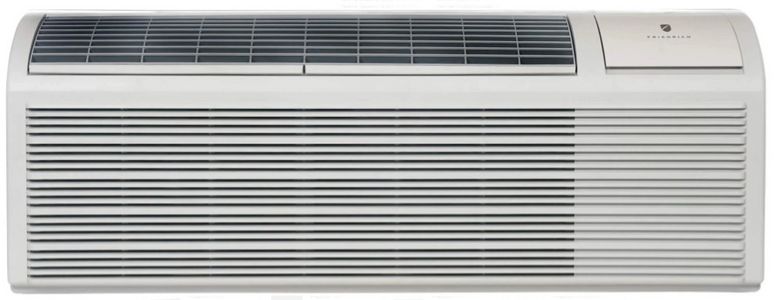

Friedrich White FreshAire Packaged Terminal Air Conditioner with Heat Pump


Model #:

PVH12K3SFB

Model #: PVH12K3SFB
1368820
Friedrich
$1,834.80

At a Glance

Product Dimensions 16"h x 42"w x 21"d

The most advanced PTAC ever. Inverter compressor, award-winning and patented FreshAire make-up air system to help achieve ASHRAE 62.1 standards, ultra-quiet operation with the highest STC ratings in the industry*, and optional FreshAire IAQ accessories for healthy indoor air quality.Read More

$1,834.80

We Match Prices!

Get to know this product.

Product Overview

Product Overview
Conditioned Fresh Air

Friedrich's FreshAire PTAC system helps achieve ASHRAE 62.1-2013 requirements and brings up to 52 CFM of conditioned, MERV 8 filtered, outside air into the space.

Patents-pending technology uses the inverter compressor and main cooling system to optimize the temperature and humidity level of incoming air.

FreshAire™ IAQ Ready

FreshAire® IAQ is a suite of indoor air quality (IAQ) accessories for use with Friedrich Air Conditioners, all with one dedicated purpose - healthy indoor air.

This product includes our patented FreshAir make-up system and is compatible with FreshAire UV, and FreshAire Purifier by iWave.

Precision Inverter® Technology

Precision Inverter® variable speed compressors deliver efficiencies up to 13 EER and a 15 SEER equivalent.

Compressors operate down to 20% of rated capacity, or up to 120%, matching the unit output to the actual demand of the space for increased comfort and lower energy consumption.

Smoothest PTAC Sound Available

The variable-speed operation of the FreshAire PTAC allows the unit to work at the optimal speed to match the true load of the room.

This not only provides the best energy consumption curve but also adds to guest comfort by eliminating the harsh start-ups associated with single-speed compressors.

Widest Cooling & Heating Range in the Industry

Makes operations more cost-effective and environmentally friendly as compared to R-22 refrigerant.

Variable speed technology gives you the flexibility of a full line of PTACs with only two models.

Offers the highest available capacity of any 42x16 PTAC on the market at over 17000 Btus.

Comfort & Convenience

Intuitive unit controls are user-friendly with an easy-to-read LED display that can show either set-point or actual room temperature as selected by the owner.

Dehumidification removes moisture in cool mode to improve comfort and reduce the chance of mold and mildew growth.

Maintenance and Installation

Modular product design ensures easy access to key components for cleaning and repairs, including washable, lift-out air filters.

Surehold Front Cover System® securely attaches the front each time. The unit may be installed low to the floor.

Friedrich is recognized as the top brand of specialty air treatment products for the worldwide market, offering differentiated solutions for room air conditioning, dehumidification, and air purification.

*Air Conditioning only, all other products are sold separately. Images may not reflect actual size. Color in images may differ in person; see retailer for the actual finish.

Specifications

General Specs

Product Weight (lbs.)120
ENERGY STAR CertifiedNo
Width (in.)42
Appliance ColorWhite
Depth (in.)21
Height (in.)16
ColorWhite
Control TypeRemote
SeriesProfessional
Manufacturer Warranty5-Year
Color Finish NameWhite
Number Of Cooling Speeds4 (cool)
ADA CompliantNo
Air Conditioner TypeThrough-the-Wall
Wifi CapableNo
BTU Cooling Rating18000
BTU Heat Rating11800
Voltage230/208
Air Conditioner FeaturesAdjustable Humidistat, Approved For Outdoor Use
Air Filter FeaturesWashable, Removable
Heater IncludedYes

Specifications

Performance Data

Cooling Capacity Btu: 12000/11800
Cooling Capacity Min./Max Btu:7929-17142
Cooling Watts:1040/1025
Energy Efficiency Ratio EER: 11.5/11.5
Reverse Heating Capacity Btu: 11600/11800
Reverse Heating Capacity Min./Max. Btu: 6995-16187
Heating Watts: 970/950
COP: 3.57/3.58
Moisture Removal Pts./Hr.: 1.9
Sensible Heat Ratio: 78%

Electrical Data

Voltage (1 PHASE, 60 Hz): 230/208
Volt Range: 253-187
Current Amps: 4.5/5.0
Reverse Heat Amps: 4.6/4.9
Power Factor: 0.96
Compressor RLA: 4.1
Outdoor Fan Motor HP: 1/12

Airflow Data

Indoor CFM, HIGH: 470
Indoor CFM, LOW: 360
Make-up Air CFM@0.05" wc: 52

Physical Data

Sleeve Dimensions H x W x D: 16" x 42" x 13 3/4"
Dimensions with front H x W x D: 16" x 42" x 21"
Cut Out Dimensions H x W: 16 1/4" x 42 1/4"
R-410A Charge Oz.: 32.80
